YX34-190-760 Glazed Tile Roof Panel Roll Forming Machine

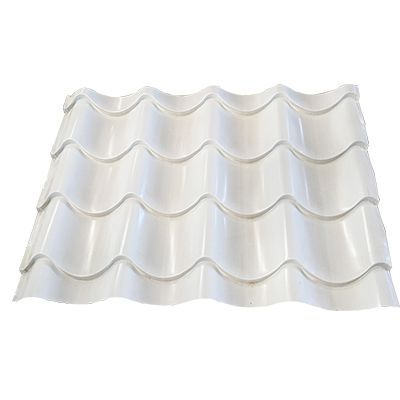

YX34-190-760 glazed tile roof panel roll forming machine is equipped with a hydraulic stamping unit for the production of 760mm wide and 0.4-0.6mm thick glazed tile roof panels. This machine comes with a maximum production capacity of 8m/min.
| Model | YX34-190-760 |
| Dimension | 7000*1500*1500mm |
| Motor Power | 7.5KW |
| Hydraulic Power | 3.7KW |
| Forming Steps | 16steps |
| Forming Speed | 3-8m/min |
| Voltage | 380V/50HZ/3PH |
| Material Thickness | 0.4-0.8mm |
| Rib Height of Roofing | 34mm |
| Effective Cover Width | 760mm |
| Tile Step Distance | 100mm to 600mmVariable |
| Feeding Material Width | 914mm |
| Control System | PLC Control |
-
-
Cutter is manufactured by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.
-
-
Roller is made of high quality 45# steel with CNC lathes.
Hard chrome plating is available for long service life.
Body frame is welded with 400# H bean.
-
-
PLC control system can be chosen from Schneider, Siemens, and Delta.
-
-
Hydraulic pre-cutter can be chosen for operation to save labor cost.
- Main Machine
- 5 Tons Manual Uncoiler
- Hydraulic Forming Cutter (Material: Cr12Mov with heat treatment)
- Hydraulic System
- PLC Computer Controlling System with touch Screen (Brand: Schneider)
- Manual Pre-cutter OR Hydraulic Pre-cutter
- Tools
- Operation Manual
-
