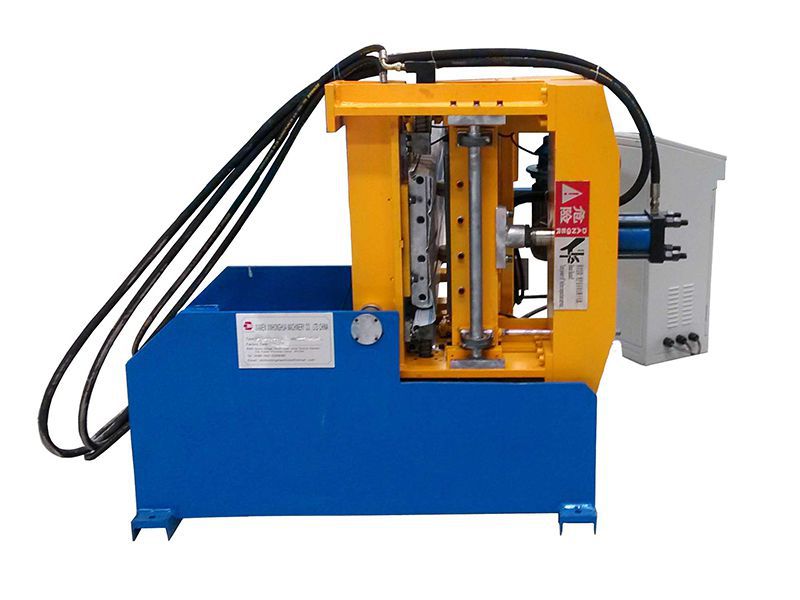

YX65-400-433 Standing Seam Crimping Curving Machine
YX65-400-433 standing seam crimping curving machine is capable of crimping and curving operations of aluminum and steel panel. PLC control system is adopted for automatic production. Available min. convex crimping curved radius is 1m.
Thickness for aluminum panel: 0.9-1.2mm
Thickness for steel panel: 0.55-0.8mm
Sample for crimping curving standing seam roofing
Model | YX65-400-425 |
Dimension | 1500*900*1500mm |
Hydraulic Motor Power | 5.5kW |
Forming Speed | 3-8m/min |
Voltage | 380V/50HZ/3PH |
Width of Straight Roofing to Curved | 400mm, 433mm |
Min. Convex Crimping Curved Radius | 1m |
Thickness for Aluminum Roof | 0.9-1.2mm |
Thickness for Steel Roof | 0.55-0.8mm |
Control System | PLC Control |
- Main curving machine
- PLC computer controlling system with touch screen (Brand: Schneider)
- Tools
- Operation Manual
