YX65-400-425 Standing Seam Roofing Machine

YX65-400-425 Standing Seam Roofing Machine

YX65-400-425 standing seam roofing machine is designed for producing straight and tapered profiles with a width of 400mm and 425mm. This metal roofing machine can roll form aluminum material with thickness of 0.7-1.0mm and steel material with thickness of 0.5-0.8mm. Adopting PLC control system realizes automatic production in an easy manner. The compact structure enables it to be loaded in a 20GP container, allowing for easy transport to the construction site.

Inquiry
Samples
Samples
Samples
This standing seam roofing machines can be customized to your demands and below illustrates the profile drawings.
Samples
Samples
Samples
Specifications
Model YX65-400-425
Dimension 5800*1600*1500mm
Motor Power 7.5KW*2
Hydraulic Power 2.2KW
Forming Steps 13Steps
Forming Speed 8-15m/min
Voltage 380V/50HZ/3PH
Effective Width 400mm,425mm
Material Width 575mm,600mm
Height of Roofing 65mm
Aluminum Thickness 0.7-1.0mm
Steel Thickness 0.5-0.8mm
Control System PLC Control
Details
  • Hydraulic Post Cutter
  • Hydraulic post cutter is made by Cr12Mov mold steel, with HRC60-62 heat treatment for high quality and long service life.

  • Roller
  • Roller is manufactured form high quality 45# steel with CNC lathes and heat treatment. Hard chrome plating is optional for long service life.

  • Tapered forming: One time tapered forming
  • Tapered Forming both size use for the tapered profile forming, two times forming for the tapered profile.

  • Available to fix in 20GP container
  • Available to be loaded in a 20GP container.

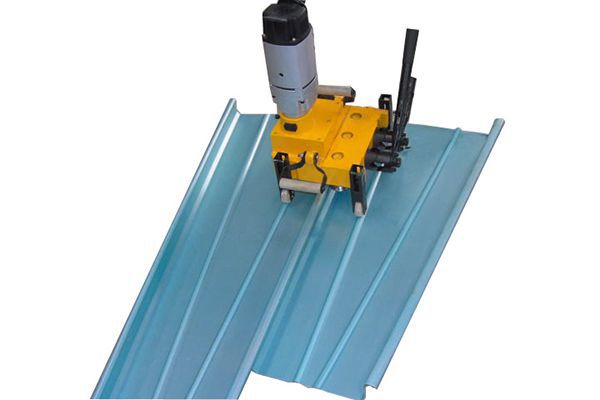

  • Auto Seamer
  • Auto Seamer

Main Accessories
  • Main Forming Machine for make Straight and Tapered Roof
  • 5 Tons Manual Uncoiler/or 5 Tons Hydraulic Uncoiler
  • 20GP New Container
  • Auto Seamer
  • Hand Seamer
  • PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
  • Making Tapered Standing Seam Roofing
  • Run Out Table
  • Operation Manual
