YX65-400-500 One Times Tapered Forming for One Time Tapered Forming
YX65-400-500 standing seam roofing machine is specially designed by Xinhonghua Machinery for tapered profile made by one-time forming together with slitting. Both straight and tapered profiles are available with this forming machine. Compact structure enables this machine to be loaded in a 40GP container for easy transport. The machine could be customized depending to customer’s needs.
- Straight and tapered profiles are available in one machine.
- The tapered profile is one times formed.
- Smart body, available to fix in 40GP container, easy transport to the site
- Easy operation, low maintain cost
| Model | YX65-300-400-500 |
| Dimension | 7000*2000*1050mm |
| Main Driving Motor Power | 7.5kW*2 |
| Hydraulic Power for pre-cutting | 3kW |
| Servo motor (Schneider; use for changing types) | 2kW |
| Motor (use for controlling angle) | 1.1kW*2 |
| Motor(use for slitting) | 1.1.kW |
| Motor(use for feeding device) | 4kW |
| Forming Steps | 18Steps |
| Forming Speed | 8-15m/min |
| Voltage | 380V/50HZ/3PH |
| Effective Width for Straight Profile | The narrowest: 200mm; the widest: 700mm |
| Effective Width Tapered Profile | The narrowest for the tapered side: 220mm; the widest for the other side: 700mm (Range of slope: 0~2.5 degrees.) |
| Height of Roofing | 65mm |
| Aluminum Thickness | 0.8-1.2mm |
| Steel Thickness | 0.6-0.8mm |
| Control System | PLC Control |
-
-
Flat Sheet Cutting Device
Cut the sheet before roll forming to required length.
Hydraulic power to cut, pump motor: 3kW
Feeding device with power, motor: 4kW
-
-
Roller is made of high quality 45# steel with CNC lathes and heat treatment. Hard chrome plating is also optional for long service life.
-
-
Tapered forming: One time tapered forming
-
-
Auto Seamer
-
-
Available to be loaded in a 40GP container.
- Main Forming Machine for make Straight and Tapered Roof
- 5 Tons Manual Uncoiler/or 5 Tons Hydraulic Uncoiler
- 40GP New Container
- Auto Seamer
- Hand Seamer
- PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
- Making Tapered Standing Seam Roofing-one times forming
- Run Out Table
- Operation Manual
-
YX65-400
YX65-400 Standing Seam Roofing Machine
-
YX65-400
YX65-300-400 Standing Seam Roofing Machine for One Time Tapered Forming
-
YX65-300-400-500
YX65-300-400-500 Standing Seam Roofing Machine for One Time Tapered Forming
-
YX65-400-500
YX65-400-500 One Times Tapered Forming for One Time Tapered Forming
-
YX65-300-400-500
YX65-300-400-500 Standing Seam Roofing Machine
-
YX65-400-425
YX65-400-425 Standing Seam Roofing Machine
-
YC65-470
YC65-470 Snap Lock Roofing Machine
-
YX51-410-820
YX51-410-820 Snap Lock Profile Roofing Machine
-
KLS25-220-530
KLS25-220-530 Standing Seam Roofing Machine
-
KLS38-220-530
KLS38-220-530 Portable Standing Seam Roofing Machine
-
YX65-300-600
YX65-300-600 Standing Seam Curving Machine
-

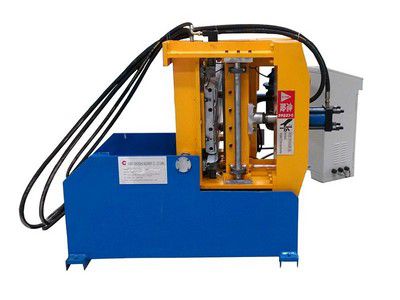

YX65-400-433
