Z100-300 Full Automatic Adjustable Z Purlin Machine

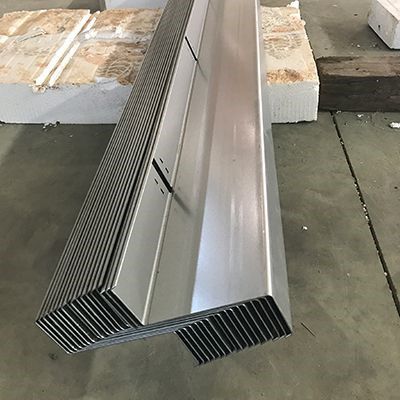

Z100-300 full automatic adjustable Z purlin machine is specially developed for automatic profiling of cord-formed Z purlins. Width adjustment is within 1 minute, ranging from 100mm to 300mm. This machine can roll form 1.2-3.0mm thick materials and features three-level production speed: 8m/min, 16m/min and 25m/min.
- Make different purlin size without changing rollers or spacers
- Pre-cutting system, without changing cutter for different sizes
- Optional punch hole at any position of purlin web and flange
| Model | Z100-300 |
| Dimension | 7800*1700*1600mm |
| Hydraulic Motor Power | 22kW |
| Motor Power for adjusting punching hole | 0.18kW*2 |
| Forming Steps | 13 steps+3 steps for reshaping |
| Forming Speed | 8m/min,16m/min,25m/min |
| Voltage | 380V/50HZ/3PH |
| Effective Width | 100-300mm |
| Height of Roofing | 40-100mm |
| Material Thickness | 1.2-3.0mm |
| Control System | PLC Computer Control |
| Rollers | Gcr15 steel with heat treatment, plate hard chrome on the surface of rollers |
| Material for Shaft | 40Cr steel |
| Material for Puncher | Cr12Mov |
| Material for Cutter | Cr12Mov |
-
-
Punching system with 4 cylinders, available for single hole and double holes
-
-
Rollers of z purlin are manufactured from high quality bearing steel GCr15 with CNC lathes and heat treatment. Black oxide coating or hard-chrome coating is optional. With feeding material guide roller, body frame is welded with 400# H type steel.
-
-
Own brand PLC control system, specially-made for z purlin punching system.
-
-
With pre-cutting system and post cutting system, there is no need to change cutter for different sizes.
-
-
Available operation for electric run out table
- Main Purlin Forming Machine
- 3 Tons Manual Uncoiler
- Automatic Guide Device
- Automatic Reshaping Device
- PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
- Hydraulic Motor System
- Pre-punching Holes Device( the buyer decide the size of punching holes )
- Pre-cutting Device (Available to add post-cutter)
- Run Out Table
- Operation Manual
-
