JM75 Roller Shutter Door Roll Forming Machine
JM75 roller shutter door roll forming machine is developed for the production of slats for roller shutter door. The machine can roll form 0.8-1.2mm thick and 75mm wide materials.
- Easy operate, low maintain cost
- Higher cost performance
- High quality with faster working speed, max speed can reach 30m/min
| Model | JM75 |
| Dimension | 5500*1000*1400mm |
| Motor Power | 4kW |
| Hydraulic Power | 1.5kW |
| Forming Speed | 8-12m/min |
| Voltage | 380V/50HZ/3PH |
| Forming Steps | 14+3 steps for reshaping |
| Material Thickness | 0.8-1.2mm |
| Effective Width | 75mm |
| Roller Material | Gcr15 steel plate hard chrome on the surface |
| Cutter Material | Cr12Mov with heat treatment |
| Control System | PLC Control |
-
-
Cutter is manufactured by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.
-
-
Roller is made by high quality Gcr15 mold steel with CNC lathes.
Plate hard chrome coating is optional for long service life.
Body frame is welded with use 400# H bean.
-
-

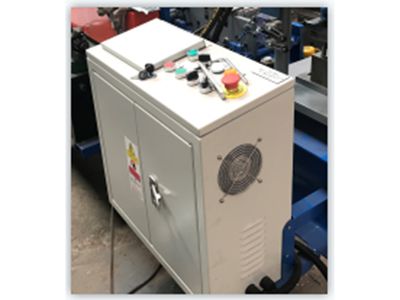

PLC control system can be chosen from Schneider, Siemens, and Delta.
- Main machine
- 3 tons manual uncoiler
- Hydraulic forming cutter
- Hydraulic system
- PLC computer controlling system with touch Screen (Brand: Schneider)
- Tools
- Operation manual
