YX75-900 Floor Decking Roll Forming Machine

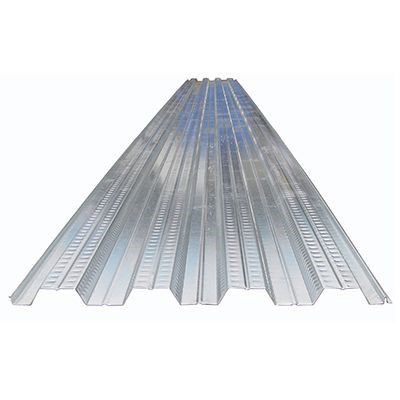

YX75-900 floor decking roll forming machine is used to make metal decks for floor industries. The following shows the floor decking roll forming machine with 900mm effective width for your reference.
- Easy operation, low maintenance cost
- Higher quality, available for rolling the max steel thickness 1.5mm with 550mpa
- High cost performance
|Hydraulic Motor Power||30KW|
|Forming Steps||28 steps|
|Material Thickness||0.8-1.2mm or 0.8-1.5mm|
|Rib Height of Decking||75mm|
|Effective Cover Width of Decking||900mm|
|Feeding Material Width||1219mm|
|Roller Material||Gcr15 steel with Heat Treatment and Plate Hard Chrome on the surface|
|Shaft Material||40Cr Steel|
|Cutter Material||Cr12Mov with Heat Treatment|
|Control System||PLC Control|
- Main Machine
- 5 Tons Hydraulic Uncoiler
- Hydraulic Forming Cutter (Material: Cr12Mov with heat treatment)
- Hydraulic Motor System
- PLC Computer Controlling System with touch Screen (Brand: Schneider)
- Operation Manual
